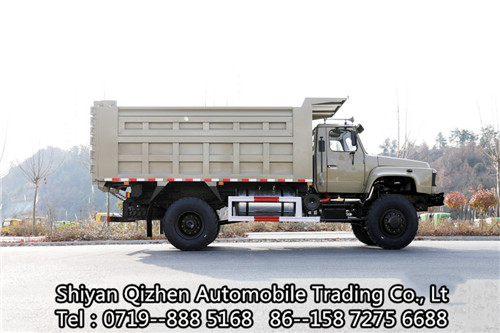

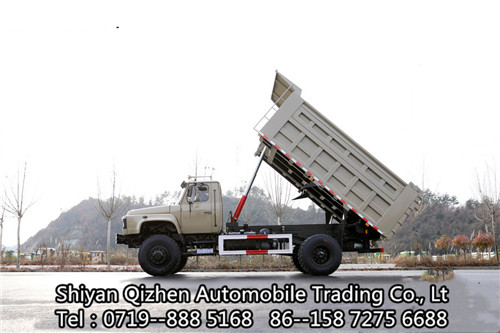

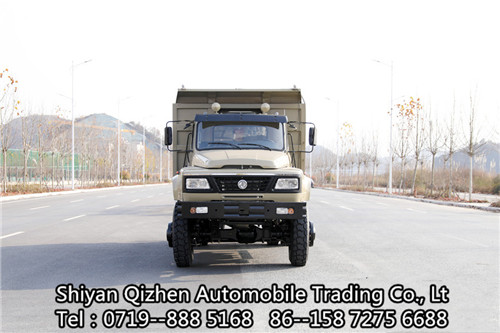

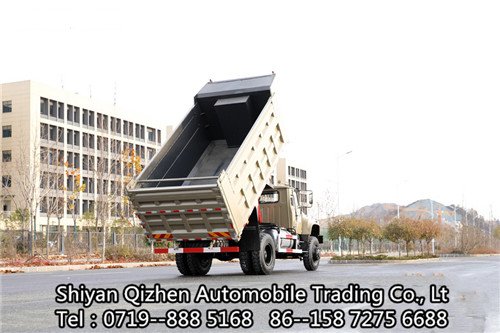

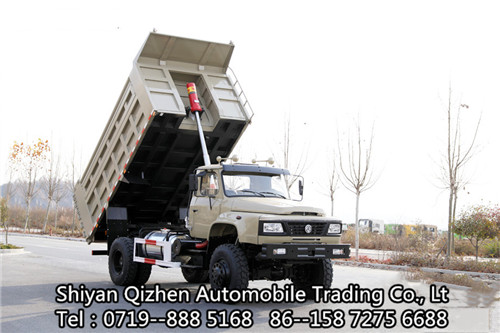

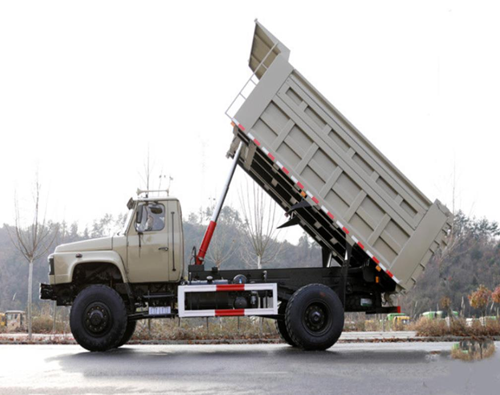

This is a heavy-duty 4x4 commercial truck designed for rugged terrain and heavy-load operations.
Drive type | 4x4 | Cab | Long head and big glass |
Engine | Yuchai YC6A240-30 | Power | 177kw |
Displacement | 7255ml | Transmission | Manual eight-speed |
Axle | 7T/13T(wheel-side reduction axle) | Transfer case | With high and low gears |
Frame | 860*280mm double layer, 8/8+10 pieces | Tire | 11.00R20(6+1) |
Wheelbase | 4200mm | Track | 1940/1960mm |
Fuel tank capacity | 210L | Speed | 85km/h |
Approach/departure angle | 35°/20° | Front/rear overhang | 1240/1580mm |
Ground clearance | 360mm | Obstacle clearance | 590mm |
Wading depth | 710mm | Frame height above ground | 1200mm (chassis) |
Circuit | 24V circuit system | Vehicle dimensions | 7730×2580×3070mm |
Total mass (kg) | 20000 | Curb weight (kg) | Long head and big glass |
